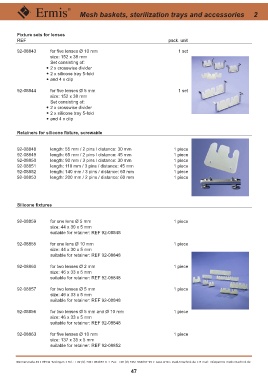

Page 47 - ERMIS Accessories

Mesh baskets, sterilization trays and accessories 2

Fixture sets for lenses
REF pack. unit

92-08843 for five lenses Ø 10 mm 1 set
size: 152 x 38 mm
Set consisting of:
2 x crosswise divider
2 x silicone tray 5-fold
and 4 x clip

92-08844 for five lenses Ø 5 mm 1 set
size: 152 x 38 mm
Set consisting of:
2 x crosswise divider
2 x silicone tray 5-fold
and 4 x clip

Retainers for silicone fixture, screwable

92-08848 length: 55 mm / 2 pins / distance: 30 mm 1 piece
92-08849 length: 65 mm / 2 pins / distance: 45 mm 1 piece
92-08850 length: 90 mm / 3 pins / distance: 30 mm 1 piece
92-08851 length: 110 mm / 3 pins / distance: 45 mm 1 piece
92-08852 length: 140 mm / 3 pins / distance: 60 mm 1 piece
92-08853 length: 200 mm / 2 pins / distance: 60 mm 1 piece

Silicone fixtures

92-08859 for one lens Ø 5 mm 1 piece
size: 44 x 30 x 5 mm
suitable for retainer: REF 92-08848

92-08855 for one lens Ø 10 mm 1 piece
size: 44 x 30 x 5 mm
suitable for retainer: REF 92-08848

92-08860 for two lenses Ø 2 mm 1 piece
size: 46 x 33 x 5 mm
suitable for retainer: REF 92-08848

92-08857 for two lenses Ø 5 mm 1 piece
size: 46 x 33 x 5 mm
suitable for retainer: REF 92-08848

92-08856 for two lenses Ø 5 mm and Ø 10 mm 1 piece
size: 46 x 33 x 5 mm
suitable for retainer: REF 92-08848

92-08863 for five lenses Ø 10 mm 1 piece
size: 137 x 35 x 5 mm
suitable for retainer: REF 92-08852
