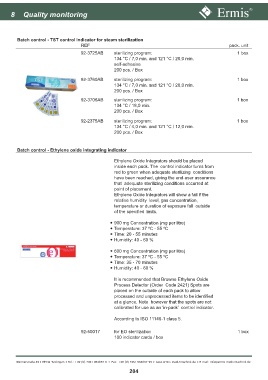

Page 204 - ERMIS Accessories

8 Quality monitoring

Batch control - TST control indicator for steam sterilization
REF pack. unit
92-3725AB sterilizing program: 1 box
134 °C / 7,0 min. and 121 °C / 20,0 min.
self-adhesive
200 pcs. / Box

92-3760AB sterilizing program: 1 box
134 °C / 7,0 min. and 121 °C / 20,0 min.
200 pcs. / Box
92-3706AB sterilizing program: 1 box
134 °C / 18,0 min.
200 pcs. / Box

92-2375AB sterilizing program: 1 box
134 °C / 4,0 min. and 121 °C / 12,0 min.
200 pcs. / Box

Batch control - Ethylene oxide integrating indicator

Ethylene Oxide Integrators should be placed
inside each pack. The control indicator turns from
red to green when adequate sterilizing conditions
have been reached, giving the end-user assurance
that adequate sterilizing conditions occurred at
point of placement.
Ethylene Oxide Integrators will show a fail if the
relative humidity level, gas concentration,
temperature or duration of exposure fall outside
of the specified limits.

900 mg Concentration (mg per litre)
Temperature: 37 ºC - 55 ºC
Time: 20 - 55 minutes
Humidity: 40 - 60 %

600 mg Concentration (mg per litre)
Temperature: 37 ºC - 55 ºC
Time: 35 - 70 minutes
Humidity: 40 - 60 %

It is recommended that Browne Ethylene Oxide
Process Detector (Order Code 2421) Spots are
placed on the outside of each pack to allow
processed and unprocessed items to be identified
at a glance. Note however that the spots are not
calibrated for use as an ‘in-pack’ control indicator.

According to ISO 11140-1 class 5.

92-50017 for EO sterilization 1 box
100 indicator cards / box
