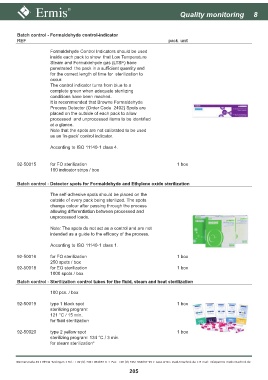

Page 205 - ERMIS Accessories

Quality monitoring 8

Batch control - Formaldehyde control-indicator
REF pack. unit

Formaldehyde Control Indicators should be used
inside each pack to show that Low Temperature
Steam and Formaldehyde gas (LTSF) have
penetrated the pack in a sufficient quantity and
for the correct length of time for sterilization to
occur.
The control indicator turns from blue to a
complete green when adequate sterilizing
conditions have been reached.
It is recommended that Browne Formaldehyde
Process Detector (Order Code 2402) Spots are
placed on the outside of each pack to allow
processed and unprocessed items to be identified
at a glance.
Note that the spots are not calibrated to be used
as an ‘in-pack’ control indicator.

According to ISO 11140-1 class 4.

92-50015 for FO sterilization 1 box
100 indicator strips / box

Batch control - Detector spots for Formaldehyde and Ethylene oxide sterilization

The self-adhesive spots should be placed on the
outside of every pack being sterilized. The spots
change colour after passing through the process
allowing differentiation between processed and
unprocessed loads.

Note: The spots do not act as a control and are not
intended as a guide to the efficacy of the process.

According to ISO 11140-1 class 1.

92-50016 for FO sterilization 1 box
250 spots / box
92-50018 for EO sterilization 1 box
1000 spots / box

Batch control - Sterilization control tubes for the fluid, steam and heat sterilization
100 pcs. / box

92-50019 type 1 black spot 1 box
sterilizing program:
121 °C / 15 min.
for fluid sterilization

92-50020 type 2 yellow spot 1 box
sterilizing program: 134 °C / 3 min.
for steam sterilization*

Dornierstraße 49 78532 Tuttlingen Tel.: +49 (0) 7461 964857-0 Fax: +49 (0) 7461 964857-99 www.ermis-medizintechnik.de E-mail: info@ermis-medizintechnik.de
205
